Joint Fabric Guide#

Joint Fabric Example Applications#

jf-control-app and jf-admin-app example applications are provided to demonstrate the Joint Fabric feature. You can find them in the examples folder.

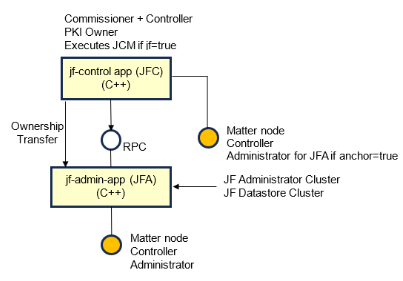

matter_joint_fabric

jf-control-app acts as a commissioner and control plane for jf-admin-app. It also acts as a PKI provider. jf-admin-app acts as an administrator and it holds an instance of the JF Administrator Cluster and of the JF Datastore Cluster.

First app commissioned by jf-control-app has to be the jf-admin-app (--anchor parameter set to true has to be used in the pairing command). jf-control-app will set the CaseAdminSubject field of the AddNOC() commands to its Administrator CAT (initial version for this CAT is configurable from CHIPProjectAppConfig.h). There is only one exception to this rule and that is when the jf parameter is used in the pairing command; in this case the CaseAdminSubject field is set to the Anchor CAT of the jf-admin-app (for more details, please refer to the Matter specification, Joint Commissioning Method (JCM) chapter).

When jf-admin-app is commissioned for the first time by the jf-control-app it is issued a NOC containing the Administrator CAT and the Anchor CAT. Initial version of these CATs is configurable (see CHIPProjectAppConfig.h)

Once the jf-admin-app has been commissioned, following pairing commands on jf-control-app will execute only the commissioning subset of steps (e.g.: through NOC issuance), then the ownership is transferred through RPC to the jf-admin-app that finalizes the commissioning.

Building the Example Application#

Bootstrap Joint Fabric Demo on Linux#

Before following the steps below, cleanup temporary chip files:

$ rm -rf /tmp/chip_*

Initialize Ecosystem A (Vendor ID = 0xFFF1)#

  • Start jf-admin-app

$ cd ~/connectedhomeip/examples/jf-admin-app/linux/out/debug
$ rm -rf jfa_a_kvs && touch jfa_a_kvs
$ ./jfa-app --capabilities 0x4 --passcode 110220033 --secured-device-port 5533 --rpc-server-port 33033 --KVS jfa_a_kvs
  • Start jf-control-app

$ cd ~/connectedhomeip/examples/jf-control-app/out/debug
$ rm -rf jfc_a_storage_directory && mkdir jfc_a_storage_directory
$ ./jfc-app --rpc-server-port 33033 --storage-directory jfc_a_storage_directory --commissioner-vendor-id 0xFFF1
  • Commission jf-admin-app

>>> pairing onnetwork 1 110220033 --anchor true

Check for the following logs on the jf-control-app side:

>>> [JF] Anchor Administrator commissioned with sucess

Make sure that the NOC issued to jf-admin-app contains an Anchor CAT and an Administrator CAT:

>>> operationalcredentials read nocs 1 0
>>> NOCs: 1 entries
$ [TOO]   NOCs: 1 entries
$ [TOO]     [1]: {
$ [[TOO]       Noc: noc_bytes
$ [TOO]       Icac: icac_bytes
$ [TOO]       FabricIndex: 1
$ [TOO]      }

Use chip-cert for decoding noc_bytes:

$ chip-cert convert-cert --x509-pem  noc_bytes - | openssl x509 -inform pem -noout -text

Check for the Anchor CAT and Administrator CAT in the Subject Field of the NOC:

$ Subject: ..., 1.3.6.1.4.1.37244.1.6 = FFFF0001, 1.3.6.1.4.1.37244.1.6 = FFFE0001

Check for the “jf-anchor-icac” inside the Subject Field of the ICAC:

$ chip-cert convert-cert --x509-pem  icac_bytes - | openssl x509 -inform pem -noout -text
....
Subject: 1.3.6.1.4.1.37244.1.3 = 0000000000000003, OU = jf-anchor-icac
...
$ cd ~/connectedhomeip/examples/lighting-app/linux/out/debug
$ rm -rf light_a_kvs && touch light_a_kvs
$ ./chip-lighting-app --capabilities 0x4 --passcode 110220044 --KVS light_a_kvs
  • Commission lighting-app

>>> pairing onnetwork 2 110220044

Check that a Fabric having AdminVendorID set to 0xFFF1 has been installed:

>>> operationalcredentials read fabrics 2 0

Check that an ACL with Subjects field set to the Administrator CAT of jf-admin-app has been installed:

>>> accesscontrol read acl 2 0

A Subjects field equal to 18446744065119551489 (FFFFFFFDFFFF0001 in hex) should be found.

Initialize Ecosystem B (Vendor ID = 0xFFF2)#

  • Start jf-admin-app

$ cd ~/connectedhomeip/examples/jf-admin-app/linux/out/debug
$ rm -rf jfa_b_kvs && touch jfa_b_kvs
$ ./jfa-app --capabilities 0x4 --passcode 110220055 --secured-device-port 5555 --rpc-server-port 33055 --KVS jfa_b_kvs
  • Start jf-control-app

$ cd ~/connectedhomeip/examples/jf-control-app/out/debug
$ rm -rf jfc_b_storage_directory && mkdir jfc_b_storage_directory
$ ./jfc-app --rpc-server-port 33055 --storage-directory jfc_b_storage_directory --commissioner-vendor-id 0xFFF2
  • Commission jf-admin-app

>>> pairing onnetwork 11 110220055 --anchor true

Check for the following logs on the jf-control-app side:

>>> [JF] Anchor Administrator commissioned with sucess

Make sure that the NOC issued to jf-admin-app contains an Anchor CAT and an Administrator CAT:

>>> operationalcredentials read nocs 11 0
>>> NOCs: 1 entries
$ [TOO]   NOCs: 1 entries
$ [TOO]     [1]: {
$ [[TOO]       Noc: noc_bytes
$ [TOO]       Icac: icac_bytes
$ [TOO]       FabricIndex: 1
$ [TOO]      }

Use chip-cert for decoding noc_bytes:

$ chip-cert convert-cert --x509-pem  noc_bytes - | openssl x509 -inform pem -noout -text

Check for the Anchor CAT and Administrator CAT inside the Subject Field of the NOC:

$ Subject: ..., 1.3.6.1.4.1.37244.1.6 = FFFF0001, 1.3.6.1.4.1.37244.1.6 = FFFE0001

Check for the “jf-anchor-icac” inside the Subject Field of the ICAC:

$ chip-cert convert-cert --x509-pem  icac_bytes - | openssl x509 -inform pem -noout -text
....
Subject: 1.3.6.1.4.1.37244.1.3 = 0000000000000003, OU = jf-anchor-icac
...
$ cd ~/connectedhomeip/examples/lighting-app/linux/out/debug
$ rm -rf light_b_kvs && touch light_b_kvs
$ ./chip-lighting-app --capabilities 0x4 --passcode 110220066 --KVS light_b_kvs
  • Commission lighting-app

>>> pairing onnetwork 22 110220044

Check that a Fabric having AdminVendorID set to 0xFFF2 has been installed:

>>> operationalcredentials read fabrics 22 0

Check that an ACL with Subjects field set to the Administrator CAT of jf-admin-app has been installed:

>>> accesscontrol read acl 22 0

A Subjects field equal to 18446744065119551489 (FFFFFFFDFFFF0001 in hex) should be found.

Run Joint Fabric Demo#
